Review FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0



Introduction

FSP has shown us quality in every product I have had the opportunity to review and they recently shipped their new ATX 3.0 series PSU with PCIe 5.0 connection which powers the new Nvidia RTX 4000 series of cards so we will take a look at the FSP Hydro Ti Pro 1000W Titanium in detail in its new version.



FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0



FSP presents us with a packaging quite out of series since this version being Titanium Certification is more premium than other models and offers us an extra box that lets us appreciate the model itself and when we take it out we have the original design of the brand offering relevant information regarding its certification and compatibility of the Nvidia RTX 4000 Series with PCIe 5.0 connectors and without forgetting the Cybenetics Certification. On the other hand, we find a fully modular power supply with flat cables that will allow us a good management of the mimes inside the cabinet and without forgetting that we have Japanese capacitors of last generation to provide the best performance of the same.



On the back of the packaging we find relevant information about the FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0 such as its main features as well as in detail how the inside of it would look like and also showing that it is fully modular which uses as mentioned before flat cables for better handling inside the cabinets.


They also show us the ECO mode which is an optional function for the user if you want to activate it or not with it will keep the power supply cooled until it reaches an estimated load otherwise we have enough information about the FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0.

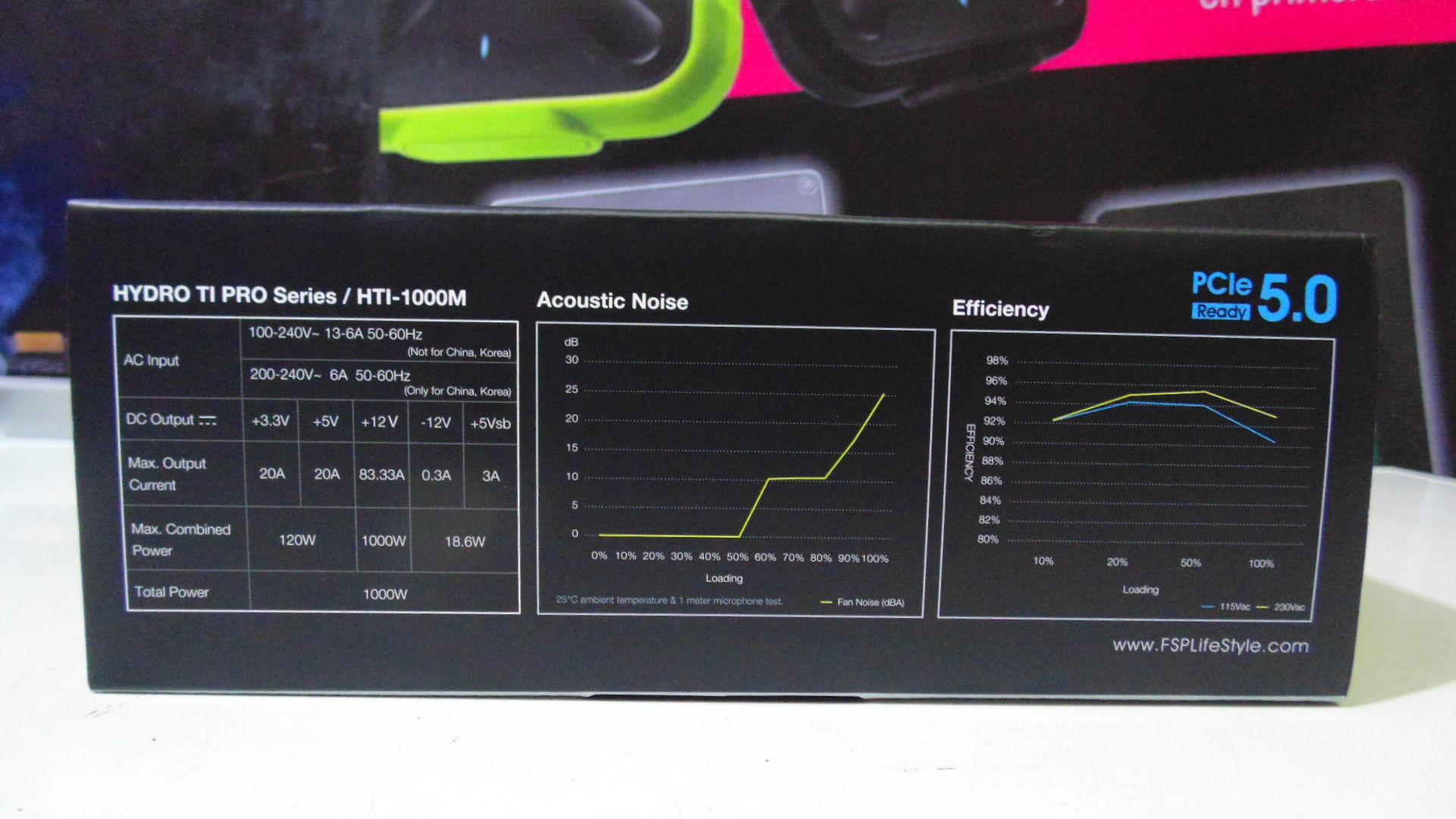

On the sides we are provided with information on the distribution of the rails in a small table that breaks down every detail and on the other side we find the amount of cables that we include and as we have seen the packaging complies with the just enough to inform us of what we have in our hands.



Accessories FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0


The accessories that FSP includes are quite complete and offer everything necessary for the use of the Hydro G Pro and therefore a form of customization quite consistent with the brand already known.



Here is a breakdown of what is included with the FSP brand:


- Power cord

- Sticker for customization

- Screws for installation

- Product Warranty

- 24-Pin Cable

- GPU Cable

- 12VHPWR GPU Cable (12+4 pin)

- CPU Cable

- Molex Cable

- Sata Cable

- Floppy cable

- Velcro straps with FSP logo

- Power supply tester

As we could appreciate the amount of accessories and all the wiring is complete to perform the installation so we will not have major problems.



Technical Specifications




 FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0

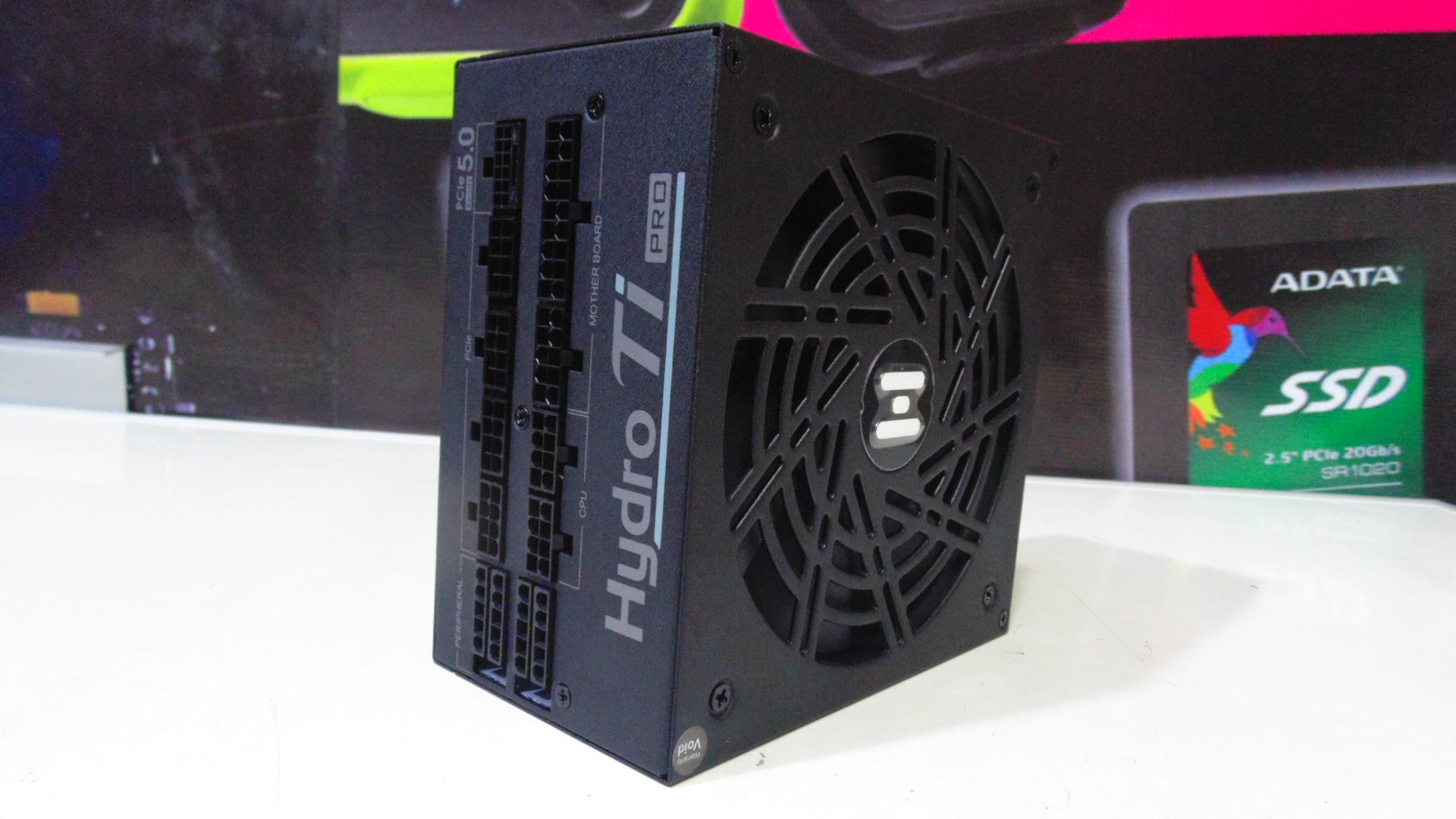

When we see the Hydro Ti Pro 1000W we see an excellent work by FSP, its design in matte black makes it very elegant and very well built. The dimensions are 150X150X86 mm, a more compact size than its brothers of the Hydro PTM PRO series.



When we see the Hydro Ti Pro 1000W we see an excellent work by FSP, its design in matte black makes it very elegant and very well built. The dimensions are 150X150X86 mm, a more compact size than its brothers of the Hydro PTM PRO series.

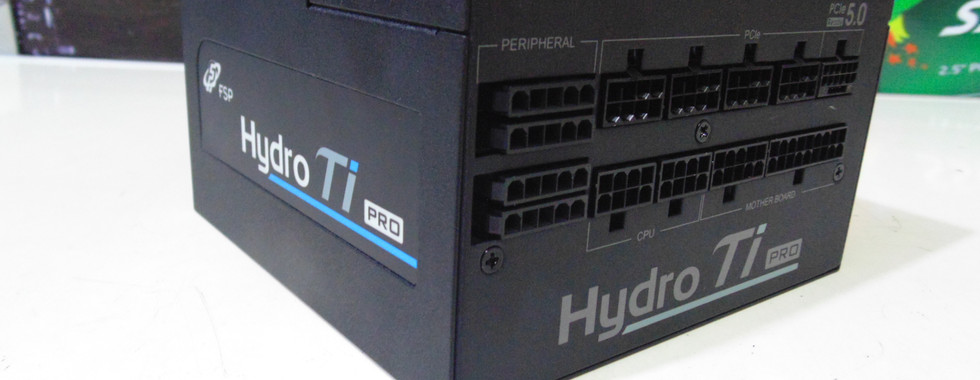

In the part of the modular connections of the FSP Hydro ti Pro 1000W ATX3.0 PCIe 5.0 are well marked to avoid connecting something wrong and as we have a new connector 12VHPWR for the new Nvidia cards now we will see it in this model so that part is excellent otherwise its design is pretty much the same as other models of the brand except the Sticker that differentiates them.


In the other part we find the connection for the power cable and the on/off button and the ECO Mode button which has the purpose of making our power supply have a hybrid mode so we will not have the fan permanently active but when the load exceeds 30% the fan will be activated at a certain speed and as it would go up depending on the load itself, but this is an option for the user that can be activated or not.


And at the bottom we have the label that shows a complete description of the power and its distribution in each of the rails, as well as more remarkable information of their protections or other relevant data of this product of the FSP brand.


As we have been able to appreciate the design of the FSP Hydro Ti Pro 1000W ATX3.0 PCIe 5.0 has been excellent as its construction is quite solid and has very good components that make it ideal for Gaming and enthusiast apart from it has a fully modular design which allows effectively order all the wiring inside the cabinet as we can choose what we need to install and even more being compatible with the new technology of Nvidia makes it a very viable alternative for those who want to be at the forefront in terms of PSU is concerned.




Main Features FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0



New ATX Power Supply Specifications

ATX 3.0 specifications are updated for next-generation high hardware consumption and ensure users get the most stable and cost-effective performance possible with the highest efficiency.

Ultra Power Density

Compared to general high-efficiency, high-wattage 170mm long power supplies, the Hydro Ti PRO series offers high power with a shorter size of 150mm.

80 Plus® Titanium® Certification

The Hydro Ti PRO series is an 80 PLUS® Titanium certified power supply that provides over 94% efficiency at 50% load and Cybenetics certification for lower power consumption.


Lambda A++ certified

Hydro Ti PRO ATX3.0 (PCIe5.0) 1000 W achieved Lambda A++ noise rating by averaging noise measurements obtained from Cybenetics test results.


Smarter, Quieter, Longer Lasting ECO Fan

With a load of less than 50%, you will enjoy the Zero RPM experience when the ECO switch of the semi-passive fan control is on, you will get the benefit of a long life of the 135mm fan with fluid dynamic bearing.

Off"-Coating from Moisture, Dust and Stains

Coated with an exclusive conformal coating that is guaranteed to offer better and more reliable performance in harsh environments and is proven to work in environments up to 95% relative humidity.


LLC Topology

Zero voltage switching of main switches, which drastically reduces switching losses and increases efficiency.

450 V, 105 °C Japanese electrolytic capacitors

The Hydro Ti PRO series uses Japanese bulk capacitors to ensure longer life and protect your equipment from the infamous capacitor leakage problem.



Modular Design

The fully modular design not only makes installation easy, but also provides your setup with a clean and tidy look.


Powerful +12V Power

Graphics card is a power-consuming component. The unique +12V single-rail design can provide stable power and avoid any overload condition.



Technical Details Hydro Ti Pro 1000W Titanium


As we know the Hydro Ti Pro 1000W Titanium offers not only raw power, but a number of very good internal features that make this product Top in power supplies. On the other hand, here we show in detail thanks to Cybenetics the internal design of how the Hydro Ti Pro 1000W Titanium which has a two-sided PCB for the different components and the 5VSB Circuit that completes it. More complete breakdown in the following link: https://www.cybenetics.com/index.php?option=power-supplies


On the other hand, we must not forget that we have high performance Japanese capacitors such as Nippon Chemicon which are the most used and also the high performance Rubycom which are of very high quality, no doubt internally we have a wide range of components that gives us a lot of security in the Hydro Ti Pro 1000W Titanium.




Performance Testing

Test Equipment




Methodology

First of all, we perform the tests using the AIDA64 Engineer program which has Test to measure the load of our equipment and in turn verify its consumption and also the variability that may exist in each of the main rails with which we can see if our test equipment is stable or not. Each test will take approximately one hour for stock configuration and also for an Overclocking configuration so we will know if our equipment is stable.



FSP Hydro Ti Pro 1000W Titanium ATX 3.0 PCIe 5.0 Installation







FSP Hydro Ti 1000W Titanium ATX 3.0 PCIe 5.0 Tests


We have subjected the power supply to the AIDA64 Engineer stress test to analyze the regulation offered by the voltages on the +12V, +5V and +3.3V rails. As we can see it offers at all times values very close to the theoretical values, being very stable and within the ATX standards.



The graph shows the little variability that we will have using the equipment at maximum power or in more demanding environments such as overclocking so the FSP Hydro Ti Pro 1000W offers very good stability in each of the main rails and excellent power delivery so its performance is more than satisfactory and this shows that the ATX standard is met and not only that standard but also the Titanium and Cybenetics Certification.


As for its consumption in CPU load (W) the increase is palpable with Overclocking since in the default configuration of the test equipment maintained normal margins according to what Intel mentions so the use of more energy is confirmed if we perform Overclocking. With what we will have no problem if we perform Overclocking as there were no problems in such tests or crazy variations and its temperature more than excellent.



Final Conclusions

The FSP Hydro Ti Pro 1000W Titanium is an excellent power supply highlighting its stability in each of the rails and very low noise in the fan. Its power offers the ability to adapt to the user's needs being compatible with the Nvidia RTX Series 40 as it offers the 12VHPWR connector. In addition, it offers excellent energy efficiency 80 plus Titanium and Cybenetics Titanium in both performance and loudness so its excellent performance in their tests cataloged it as one of the best on the market so we are more than guaranteed its excellent performance.


The Hydro Ti Pro Series comes in variants ranging from 850W to 1000W being this model 1000W on sale for $ 350 in online stores and its maximum value is the one we mentioned so each user will decide whether to go for this capacity or any lower.


Pros:

Compatible with ATX12V V3.0 &EPS12V V2.92

Lambda Certification A++

Efficiency ≧ 94% at typical load.

Japanese 450V, 105°C bulk capacitors

Japanese electrolytic capacitors

Protective conformal coating for harsh environments.

ECO mode: fan control switch to enable/disable semi-passive function

135mm fan with fluid dynamic bearing (FDB Fan)

Full modular and compact size

Cons:

- High price


Others:

- Variants from 850W to 1000W Titanium
